CUTeresqueSpoolFab Cut Sheet Detailing
High-clarity spool drawings (SpoolFab - AcornPipe)
Backed by years of pipefitting and QC experience in Alberta
Sample Drawings

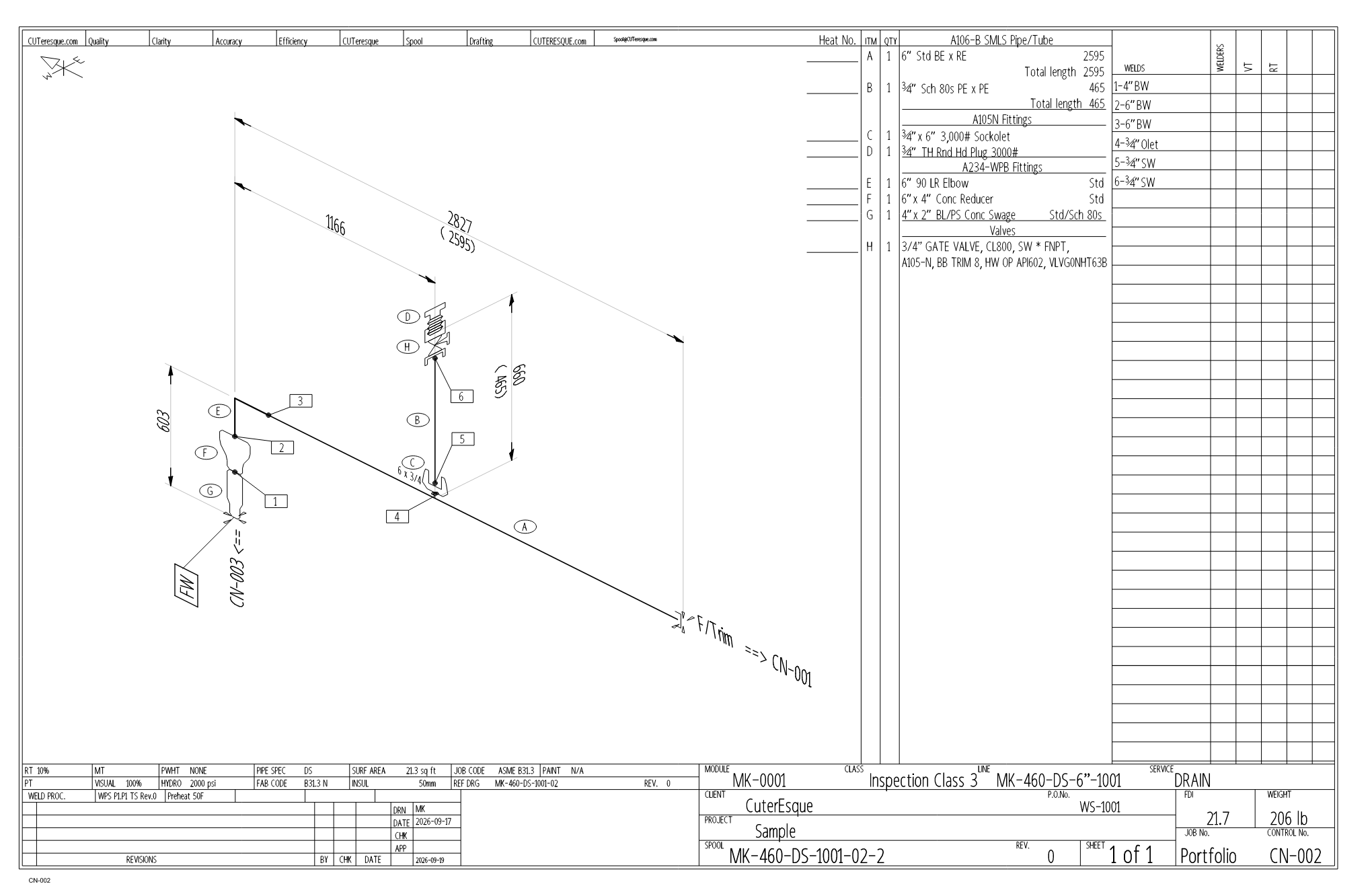

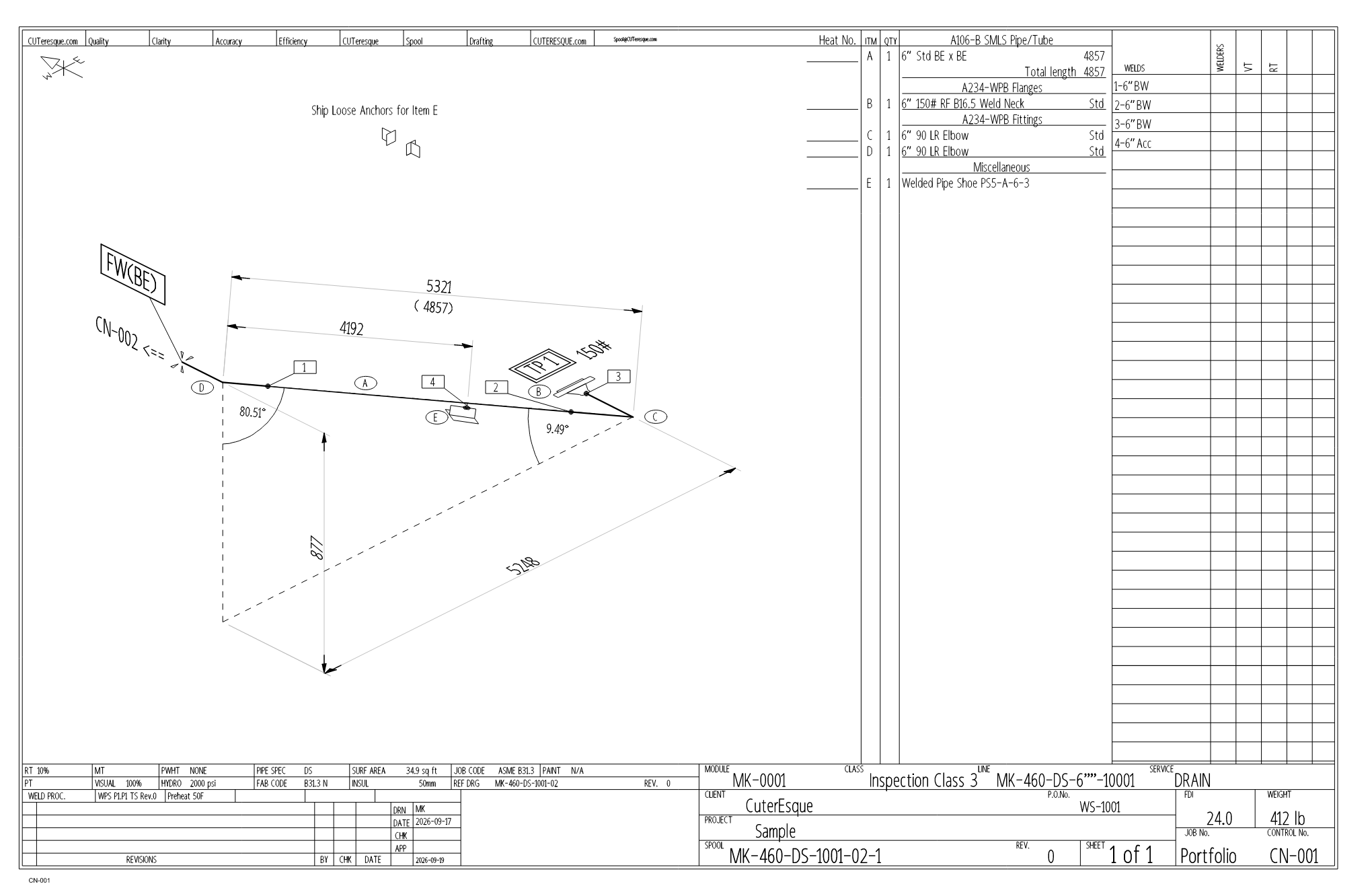

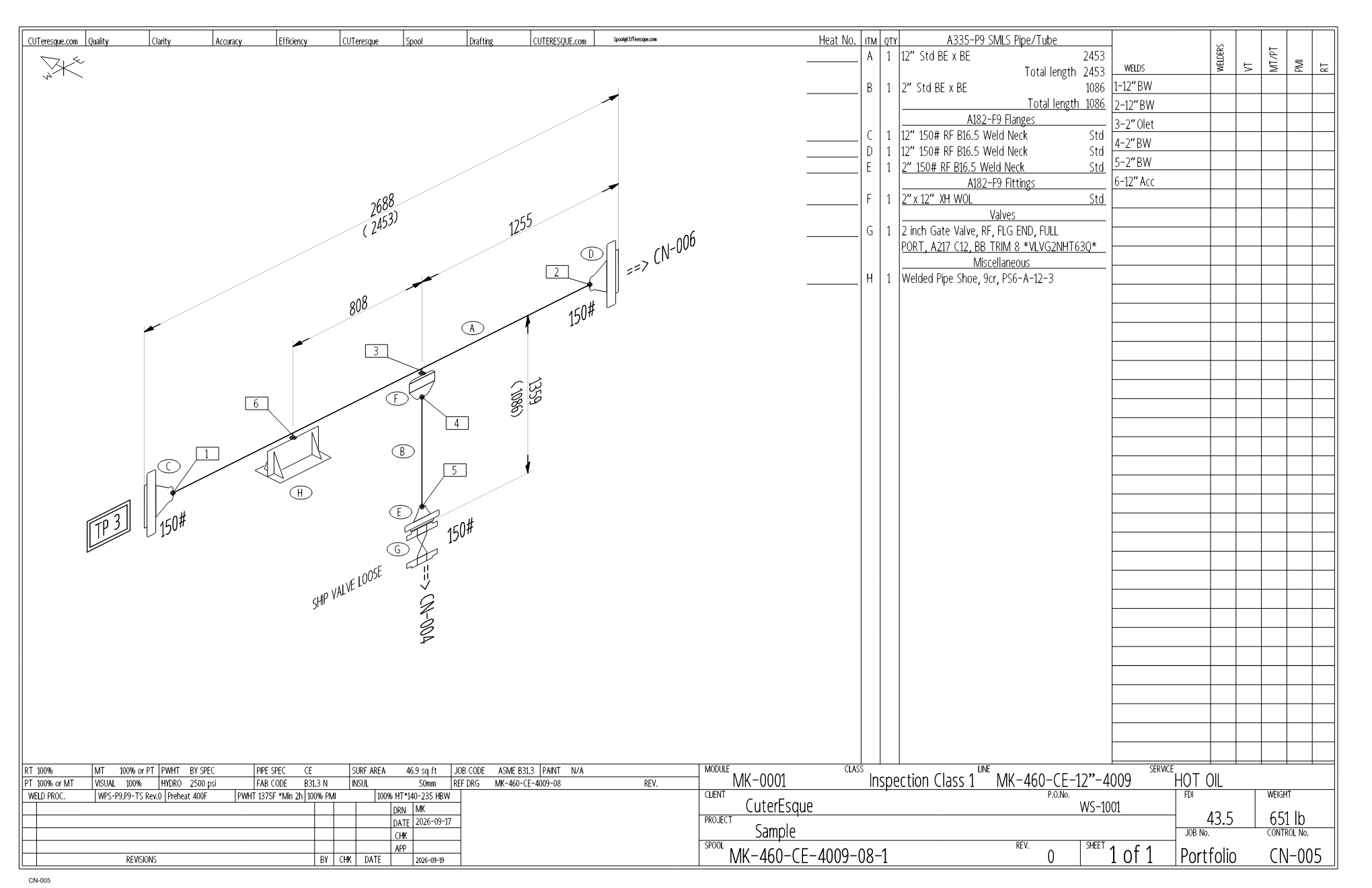

A selection of spool drawings and cut sheets produced with licensed SpoolFab (AcornPipe) software. Click any sample to enlarge it or visit the full samples page.
Services
SpoolFab Cut Sheet Production
Clean, accurate cut sheets generated with licensed SpoolFab (AcornPipe) software.
Spool, Weld, Cut & Item Spreadsheets
Organized spool summaries, weld reports, cut lists, and item reports for quick reference, traceability, and QC review.
Marked-Up Isometrics
Add On Option: Annotated isometrics showing spool boundaries and references to the corresponding SpoolFab cut sheets.
Request a Quote
Send your isometrics and requirements — get clean, accurate cut sheets at a competitive flat rate.
Request a QuoteWhy Choose Us
Alberta Fabrication Experience
Grounded in real Alberta pipefitter and QC experience.
Clean, Readable Cut Sheets
Designed for clarity on the shop floor, not the drafting desk.
Reliable Communication
Responsive updates from request to delivery.
About
I am a QC Welding Inspector and QA Specialist with an Alberta pipefitter background. I use licensed SpoolFab (AcornPipe) software to produce clean, accurate spool drawings and cut sheets for fabrication shops. My focus is clarity, consistency, and quality.
